Name: Low Viscosity Epoxy Resin with H-Class Insulation for 12-40.5kV Applications in Dry Type Transformers
Brand: Shanghai Wenyou Industry Co., Ltd.
SKU: 8316L
Price: 3.00 USD
Availability: InStock

집 > 상품 > 경화 에폭시 수지 >

Low Viscosity Epoxy Resin with H-Class Insulation for 12-40.5kV Applications in Dry Type Transformers

Low viscosity epoxy resin for transformers

H-class insulation epoxy resin

Dry type transformer epoxy resin

원래 장소:

중국

브랜드 이름:

wenyou

인증:

ISO9001, ISO14001, SGS, and UL

모델 번호:

8316L

연락주세요

인용문을 요구하세요

제품 상세정보

점도:

3000-7000mpa.s

밀도:

1.15 - 1.19g/cm3

증기압:

<0.01PA

인화점:

약 110°C

유리 전이 온도:

60~80도

모습:

미황색 투명한 점성액

지불과 운송 용어

최소 주문 수량

샘플로 20kg/통

가격

협상 가능

포장 세부 사항

20kg/통, 220kg/배럴, 1200kg/탱크

배달 시간

7 -10 근무일

지불 조건

일반적으로 t/t, l/c

공급 능력

재고가 많은 원자재

Fast Curing Epoxy Resin with High Tensile Strength and Thermal Shock Resistance for Electrical Insulation

최상의 가격을 얻으세요

고온 저항 용도로 에포시 함유 5.10-5.40 및 증기 압력 ≤0.01의 빠른 경화 에포시 樹脂

최상의 가격을 얻으세요

고전압 변압기용 열분해 온도 320°C 이상, 가사 시간 30분인 전기 절연 2액형 에폭시 수지

최상의 가격을 얻으세요

높은 강도, 오래 지속 가능한 내구성 및 CT PT에 대한 강한 단열 성능을 가진 열 전도성 에포시 樹脂

최상의 가격을 얻으세요

연락주세요

008618018933365

Elliot.yang@sh-wysy.com

86-21-64308192

지금 접촉하세요

제품 설명

Low - Viscosity Cast Resin for Dry Type Transformers: Ideal for Precise Casting

Precision is key when it comes to casting resin in dry type transformers. Our low - viscosity cast resin is the perfect choice for achieving accurate and detailed casting. The low viscosity allows the resin to flow easily into every nook and cranny of the transformer mold, ensuring complete coverage of the windings and other components. This results in a uniform and high - quality casting, free from voids and imperfections. In the manufacturing of dry type transformers with complex geometries or delicate components, the low - viscosity cast resin shines. It enables manufacturers to produce transformers with precise dimensions and excellent surface finishes. Despite its low viscosity, the resin has good mechanical and electrical properties. It hardens to form a strong and durable structure, providing reliable insulation for the dry type transformer. The low - viscosity cast resin is also compatible with a wide range of casting techniques, making it versatile for different manufacturing processes. Whether you are producing small - scale or large - scale dry type transformers, this resin can help you achieve the highest level of casting precision.

Brief Introduction

LE-8316L is a modified BPA-type epoxy resin, combined with LH-8316L, a liquid modified carboxylic anhydride hardener. This system is designed for mold forming and APG injection processes, providing high-temperature curing capabilities.

Applications

This epoxy resin is ideal for low-voltage electrical applications, including electronics, cable insulation, bonding, and sealing. It is particularly suited for sealing and connecting insulation products, as well as current and voltage transformers.

Processing Methods

Processing can be carried out using a conventional gravity casting method under vacuum conditions. The production process can also be tailored to align with the client's existing manufacturing techniques.

Properties

This two-component epoxy resin system consists of LE-8316L and LH-8316L, both in liquid form at room temperature. It is suitable for casting processes, with a glass transition temperature (Tg) ranging between 60-80°C, ensuring durability under elevated temperatures.

Formulation

Epoxy resin	LE-8316L	100 pbw
Hardener	LH-8316L	100 pbw
Filler	Silica powder	300 - 400 pbw
Color paste	LC series *	Appropriate pbw

Advantage

Low Viscosity Epoxy Resin with H-Class Insulation for 12-40.5kV Applications in Dry Type Transformers 0

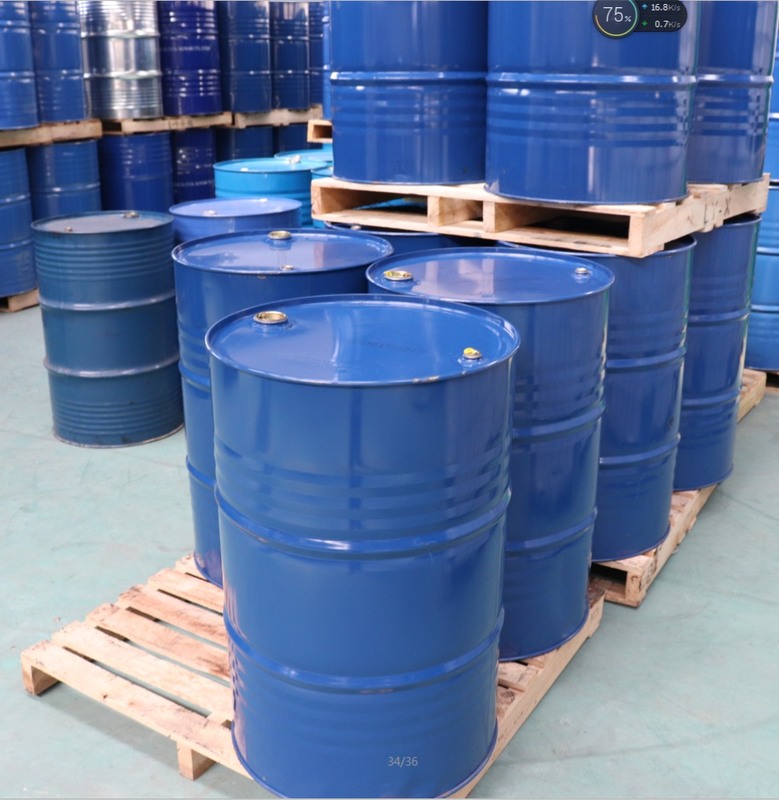

Package Image

Low Viscosity Epoxy Resin with H-Class Insulation for 12-40.5kV Applications in Dry Type Transformers 1

Shipment image

Example application image

Low Viscosity Epoxy Resin with H-Class Insulation for 12-40.5kV Applications in Dry Type Transformers 3
