Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation

Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation

Epoxy resin compound with high tensile strength

1:1 mixing ratio epoxy resin

Thermally conductive epoxy for electrical insulation

원래 장소:

상하이, 중국

브랜드 이름:

WENYOU

모델 번호:

9219K

연락주세요
인용문을 요구하세요
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation
제품 상세정보
CAS 번호:
11070-4-3
분류:
이중 구성물 접착제
Einecs No.:
216-823-5
주요 원료:
에폭시
MF:
C21H24O4
다른 이름:
에폭시 수지 포팅 컴파운드 GLUE
유형:
에폭시 수지 화합물 A & B
용법:
전기 절연
키워드:
빠른 경화 에폭시수지 경화제
재료:
에폭시 Resin+hardener
제품명:
변압기용 에폭시 AB 접착제
어플리케이션:
실내 사용
포장:
20KG 또는 200KG 또는1200KG
배달 시간:
7 일 이내에
자격증:
ISO14001 19001:2015 ISO45001
이점:
REACH,UL, 기타 인증서
요소:
이중 성분: 에폭시+ 경화제
혼합 비율:
A:B=1:1
지불과 운송 용어
최소 주문 수량
5000
가격
$3.18-3.20
관련 제품
좋은 가격 High Dielectric Strength Epoxy Resin with Thermal Stability and Chemical Corrosion Resistance for Electrical Insulation 온라인으로

High Dielectric Strength Epoxy Resin with Thermal Stability and Chemical Corrosion Resistance for Electrical Insulation

최상의 가격을 얻으세요
좋은 가격 Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation 온라인으로

Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation

최상의 가격을 얻으세요
좋은 가격 Hot-Curing Epoxy Resin with Viscosity 0.4-0.8 and Density 1.17-1.24 for Medium & High Voltage Transformers 온라인으로

Hot-Curing Epoxy Resin with Viscosity 0.4-0.8 and Density 1.17-1.24 for Medium & High Voltage Transformers

최상의 가격을 얻으세요
좋은 가격 Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 온라인으로

Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation

최상의 가격을 얻으세요
연락주세요
0086 18916511816
hope.lu@sh-wysy.com
86-21-64308192
지금 접촉하세요
제품 설명
Mechanical and physical properties
Properties
Value
Properties
Value
Tg（DSC）
75-95℃
Thermal conductivity
0.8-0.9W / mk
Tensile strength
65-85N/mm2
Thermal decomposition
＞320℃
Flexural strength
100-140N/ mm2
Water absorption
(23℃×10days)
0.10-0.20 % by wt.
Compressive strength
140-180N/ mm2
Water absorption (100℃×60 mins)
0.08-0.15 % by wt.
Impact strength
9-16kJ/ m2
Surface resistivity
1014Ω
Curing shrinkage
0.8-1.0%
Volume resistivity
1015Ω.cm
Flammability（4mm）
HB Class
Dielectric strength
30 kV / mm
Flammability（12mm）
HB Class
Loss factor
0.02
Detail images
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 0
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 2
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 4

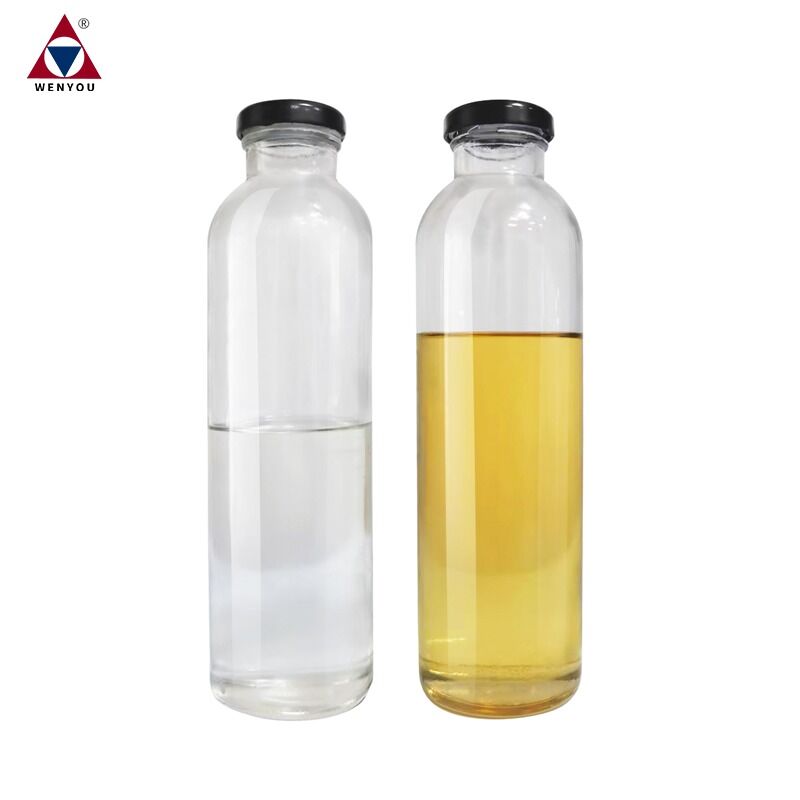

Product Show
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 6
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 8
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 10
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 12
Work shop
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 14
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 16
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 18
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 20
Our factory
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 22
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 24
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 26
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 28

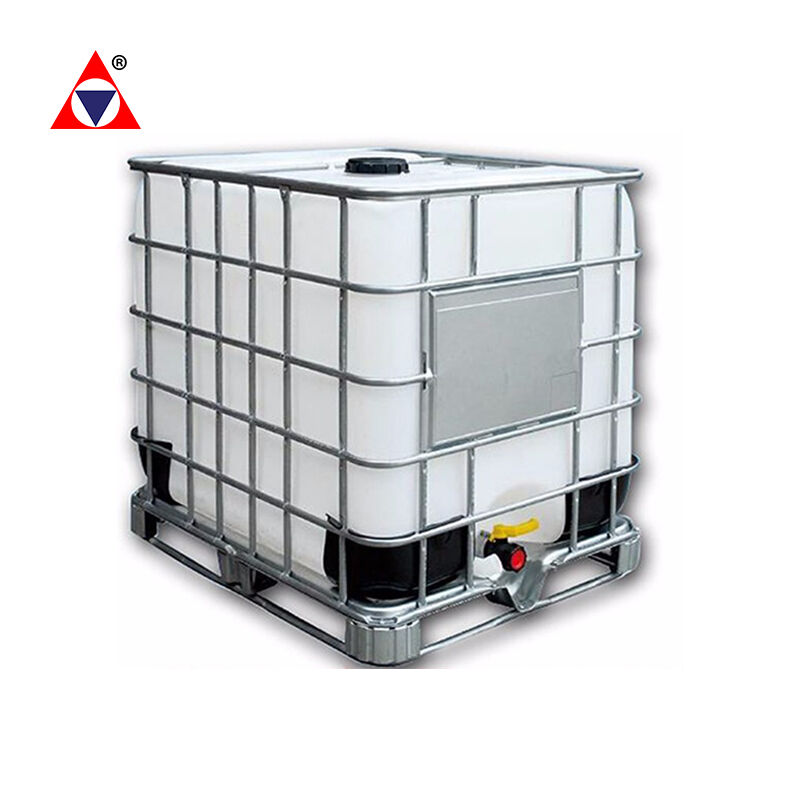

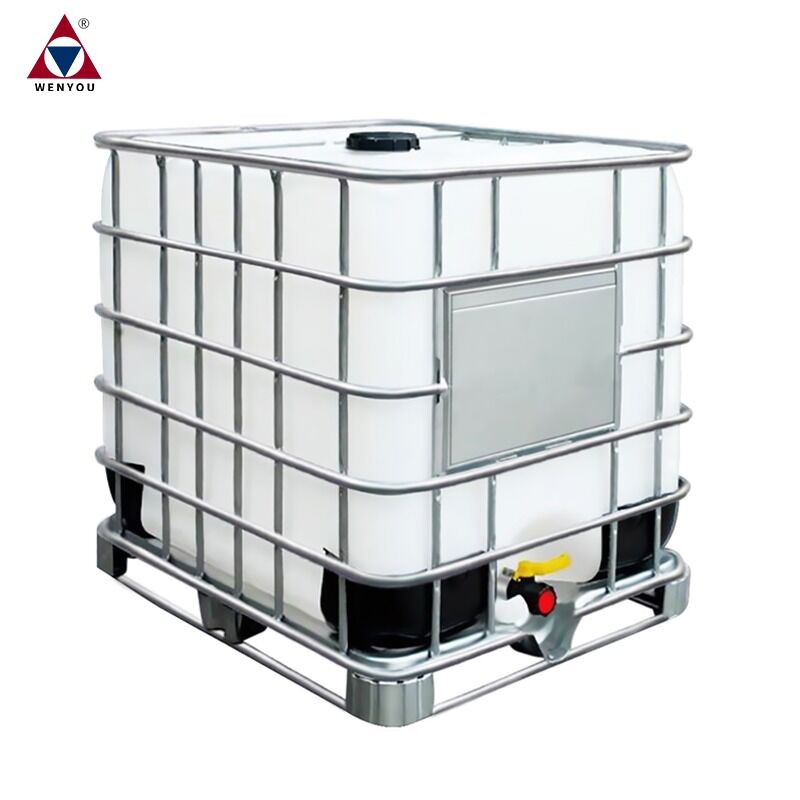

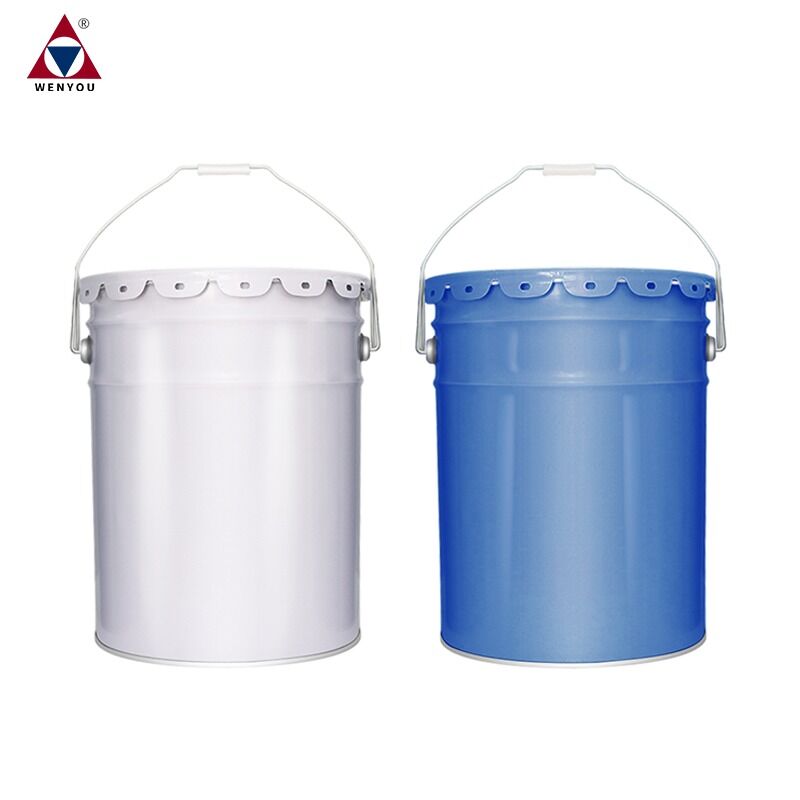

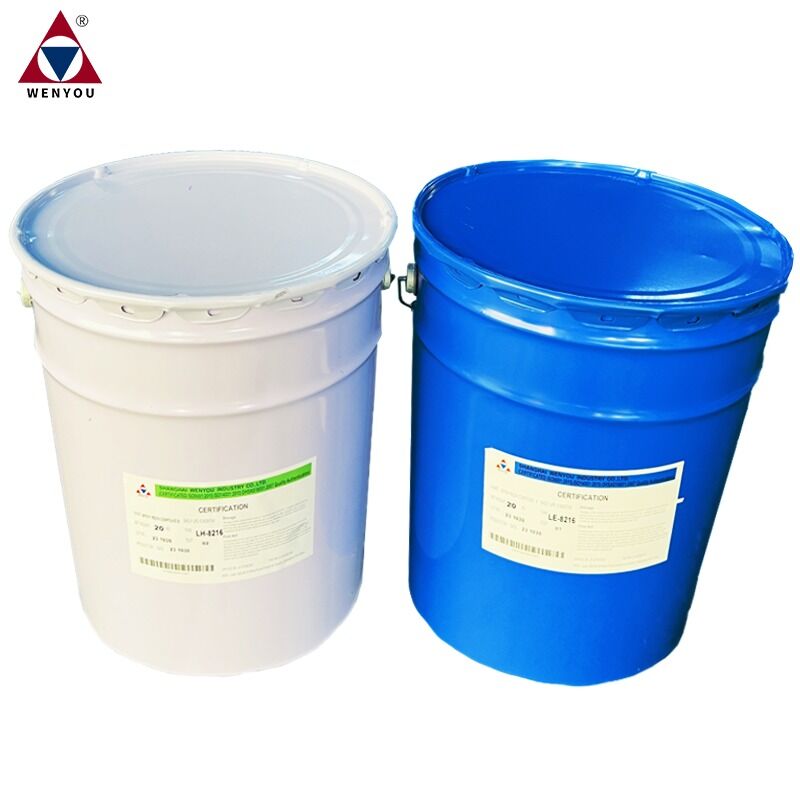

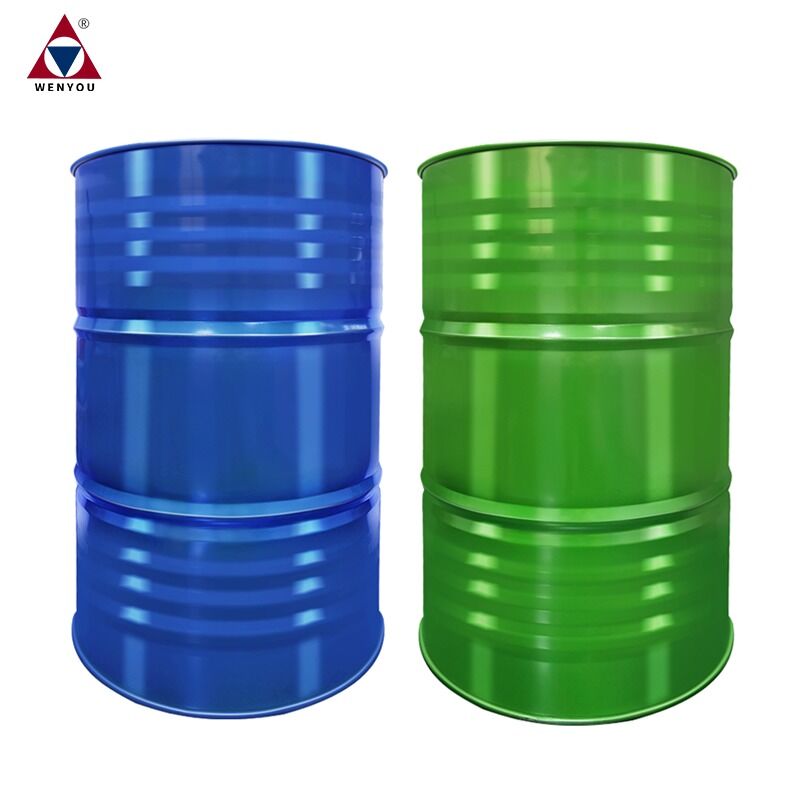

Packing & Delivery
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 30
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 32
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 34
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 36
Exhibition
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 38
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 40
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 42
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 44
Company profiles
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 46
Our company
We are specializing in the manufacturing, R&D, and sales of epoxy resin, curing agents, and related products.
Our wide range of products includes epoxy resin, flame retardant resin, curing agents, outdoor modifiers, toughening agents, epoxy
paste, demoulding agents, and fillers.  Our high-quality products are used in high voltage electrical insulation applications and
are exported globally. We are committed to providing stable products and excellent service to the global electricity industry.
