Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation

Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation

Fast-Curing Epoxy Resin

1000 - 2500mPa.s Viscosity Casting Epoxy Resin

1.16 - 1.20g/cm3 Density APG Epoxy Resin

원래 장소:

중국

브랜드 이름:

wenyou

인증:

ISO9001, ISO14001, SGS, and UL

모델 번호:

8517

연락주세요
인용문을 요구하세요
제품 상세정보
분류:
이중 구성물 접착제
용법:
절연체, 변압기 및 기타 절연 제품
애플리케이션:
중전압 및 고전압 애플리케이션용 실외 전기 절연체
에폭시 수지의 외관:
미황색 투명한 점성액
25°C의 점성:
1000-2500mpa.s
25°C에서의 밀도:
1.16 - 1.20g/cm3
25°C에서의 증기압:
<0.01PA
인화점:
약 135' C
기술:
변압기 코일 캡슐화를위한 유연한 주조 에폭시 수지 - 다른 조건에 적응할 수 있습니다.
에폭시 값:
4.5-5.0EQ/kg
지불과 운송 용어
최소 주문 수량
샘플로 20kg/통
가격
협상 가능
포장 세부 사항
20kg/통, 220kg/배럴, 1200kg/탱크
배달 시간
7 -10 근무일
지불 조건
일반적으로 t/t, l/c
공급 능력
재고가 많은 원자재
관련 제품
좋은 가격 자외선 저항성 에포시 樹脂 온라인으로 비디오

자외선 저항성 에포시 樹脂

최상의 가격을 얻으세요
좋은 가격 융통성 주름 에포시 樹脂 온라인으로 비디오

융통성 주름 에포시 樹脂

최상의 가격을 얻으세요
연락주세요
86-21-64308192
지금 접촉하세요
제품 설명
Fast-Curing APG Epoxy Resin | Flame Retardant for Electrical Parts
Flexible Casting Epoxy Resin for Transformer Coil Encapsulation
Our flexible casting epoxy resin is specifically engineered for transformer coil encapsulation, designed to withstand various mechanical and thermal stresses during operation while maintaining excellent electrical insulation properties.
Key Benefits
  • Adapts to thermal expansion and contraction without cracking or delamination
  • Absorbs mechanical vibrations to protect transformer coils
  • Maintains excellent electrical insulation properties
  • Provides optimal balance between flexibility and structural strength
  • Ensures long-term integrity of transformer encapsulation
Product Introduction
LE-8517 is a modified saturated cyclic aliphatic epoxy resin system, combined with LH-8517, a modified weather-resistant anhydride hardener. This fast-curing epoxy is ideal for electronic insulators and suitable for vacuum casting.
Applications
Designed for outdoor use in medium and high voltage electrical components including:
  • Electrical insulators
  • Transformers
  • Various insulation components
Processing Methods
Available processing options include:
  • Conventional gravity casting method under vacuum
  • Automatic Pressure Gelation (APG) process
Production methods can be customized to accommodate existing manufacturing techniques.
Material Properties
This two-component system features:
  • Saturated cyclic epoxy resin without pre-mixed fillers
  • Remains liquid at room temperature
  • Excellent UV resistance
  • Outstanding thermal shock resistance
  • Superior environmental stability
  • Exceptional mechanical and dielectric properties
Formulation
Component Material Quantity
Epoxy resin LE-8517 100 pbw
Hardener LH-8517 100 pbw
Filler Silica powder 300-360 pbw
Color paste LC series 3 pbw
Product Images

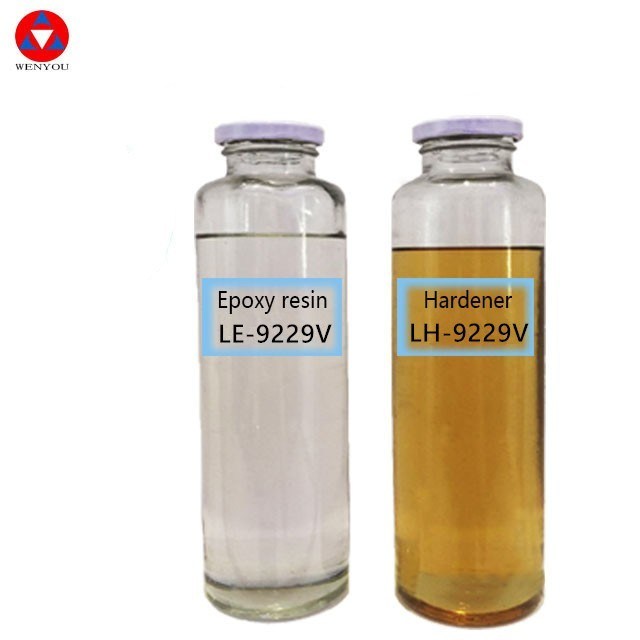

Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation 0

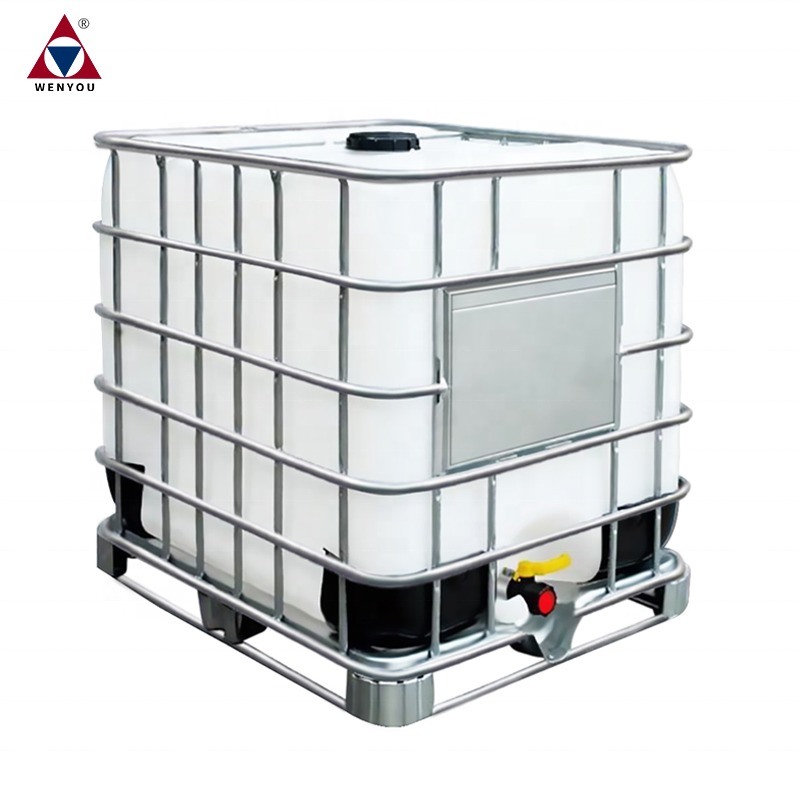

Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation 1

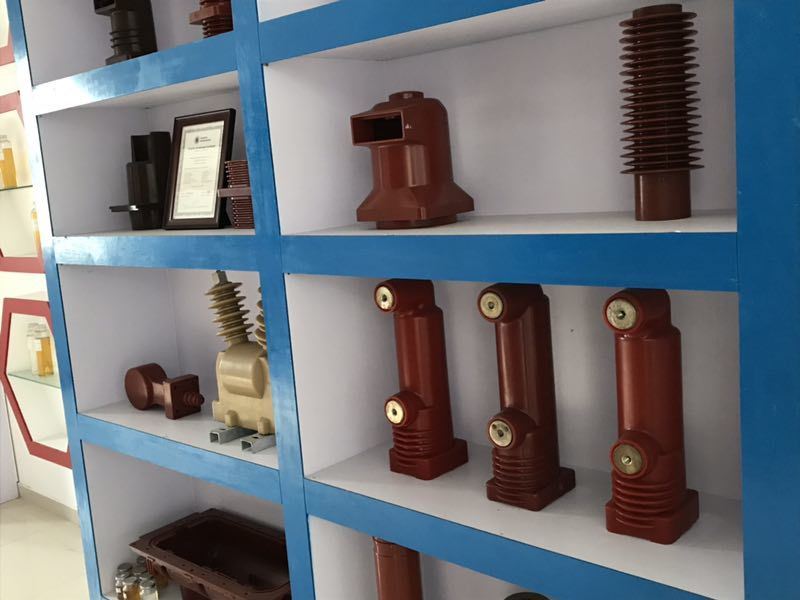

Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation 2

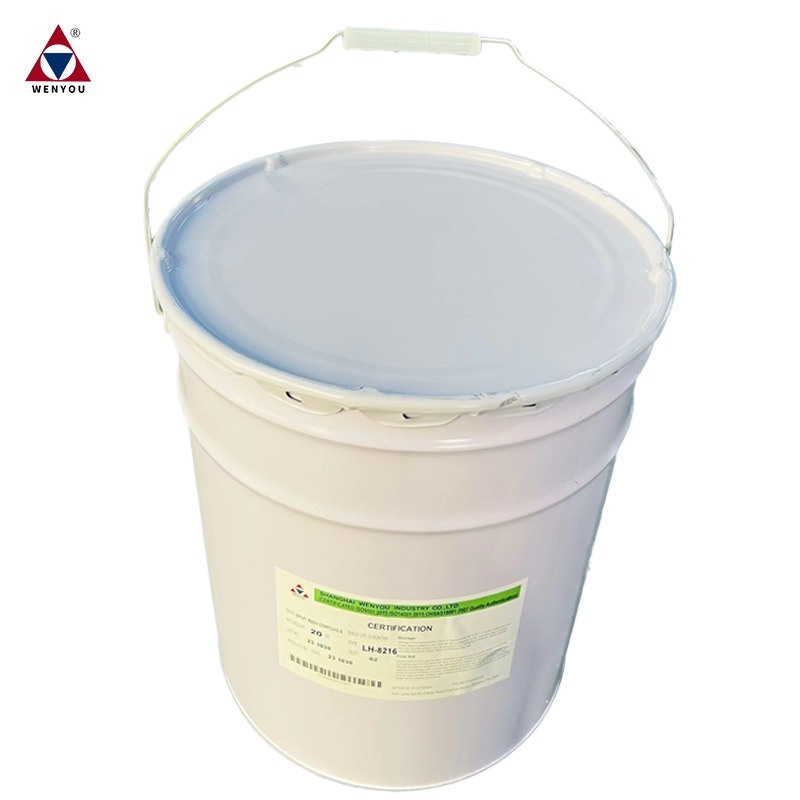

Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation 3
