Name: 10-35kV Insulation Epoxy Resin with Pre-Mixed Fillers for Room Temperature Cure in Electrical Components
Brand: Shanghai Wenyou Industry Co., Ltd.
SKU: 9229a
Price: 2.30 USD
Availability: InStock

집 > 상품 > 전기 절연 에폭시 수지 >

10-35kV Insulation Epoxy Resin with Pre-Mixed Fillers for Room Temperature Cure in Electrical Components

10-35kV Insulation Epoxy Resin

Pre-Mixed Fillers Epoxy Resin

Room Temperature Cure Epoxy Resin

원래 장소:

중국

브랜드 이름:

wenyou

인증:

ISO9001, ISO14001, SGS, and UL

모델 번호:

9229a

연락주세요

인용문을 요구하세요

제품 상세정보

분류:

이중 구성물 접착제

용법:

10~35KV 밀폐된 터미널 기둥, 트랜스포머, 전류 트랜스포머 및 기타 단열 부품

애플리케이션:

중전압 및 고전압 애플리케이션용 전기 절연체

에폭시 수지의 외관:

우유빛 백색 점성액

40' Ｃ에 있는 점착성:

10000 - 20000mPa.s

25°C에서의 밀도:

1.55 - 1.70g/cm3

25°C에서의 증기압:

<0.01PA

인화점:

약 135' Ｃ

기술:

장수성 트랜스포머 에포시 樹脂 좋은 균열 저항 야외 사용

지불과 운송 용어

최소 주문 수량

샘플로 20kg/통

가격

협상 가능

포장 세부 사항

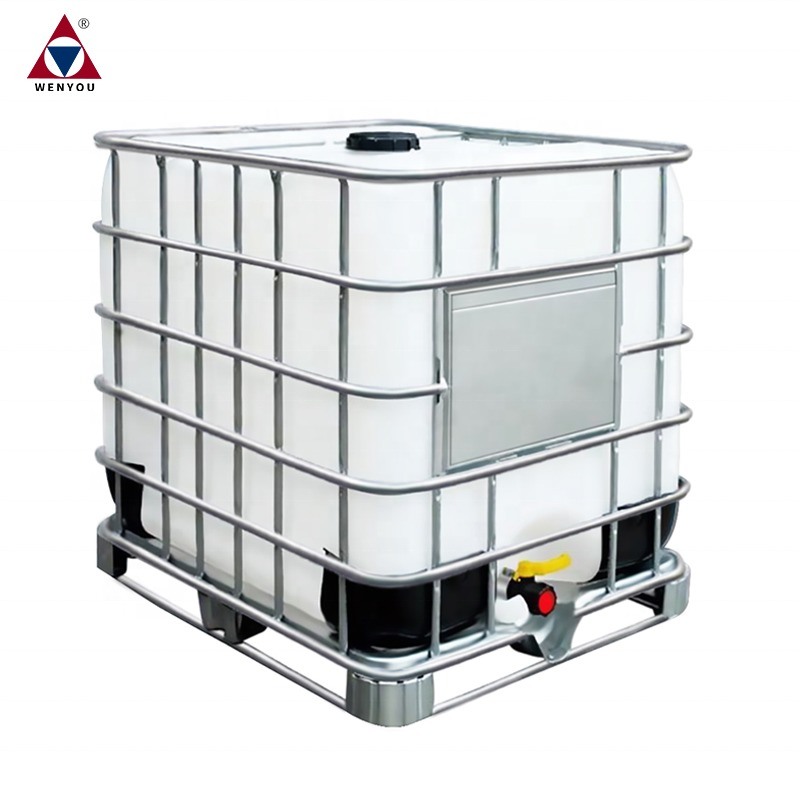

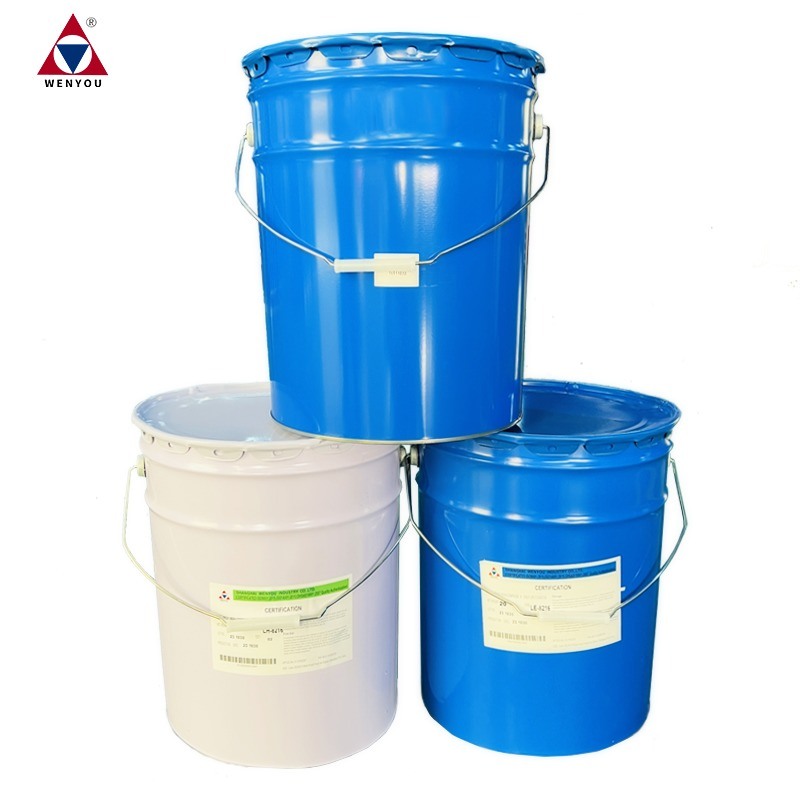

20kg/통, 220kg/배럴, 1200kg/탱크

배달 시간

7 -10 근무일

지불 조건

일반적으로 t/t, l/c

공급 능력

재고가 많은 원자재

High-Tg UV/Weather-Resistant Electrical Insulating Epoxy Resin with High Dielectric Strength for Transformer Encapsulation

최상의 가격을 얻으세요

비디오

CT/PT 단열 및 방온 캡슐화용 고전압 강도 에포크시

최상의 가격을 얻으세요

비디오

CT / PT 트랜스포머 포팅 및 캡슐화용으로 빠른 방 온도 고화 에포시 樹脂

최상의 가격을 얻으세요

비디오

소 점착성 화염 억제 에포크시 (Epoxy) 가 공백 없는 트랜스포머 코일 침착을 위해

최상의 가격을 얻으세요

연락주세요

008618018933365

Elliot.yang@sh-wysy.com

86-21-64308192

지금 접촉하세요

제품 설명

Crystal Clear Epoxy Resin Liquid for Electrical Components & Insulation

LW-9229A/B: Crack-Resistant Room Temp Cure Epoxy for 10-35kV CT/PT Insulation & Outdoor Encapsulation

UL-Certified | Pre-Mixed Fillers | Superior Dielectric Strength

Engineered for outdoor electrical insulation in Current Transformers (CT) and Potential Transformers (PT), this modified BPA epoxy system delivers crack-resistant encapsulation for 10-35kV terminal posts, bushings, and transformer components. With pre-mixed fillers in both resin (LW-9229A) and hardener (LW-9229B), it ensures consistent thermal shock resistance and long-term durability in harsh environments.

Key Advantages

Crack Resistance: Withstands thermal cycling for outdoor applications.
High Dielectric Strength: Critical for 10-35kV insulation systems.
Pre-Mixed Fillers: Simplified processing, no weighing errors.
Room Temperature Cure: Energy-efficient transformer manufacturing.
Moisture & Chemical Resistance: Protects CT/PT units from environmental degradation.

Applications

Ideal for:

10-35kV sealed terminal posts

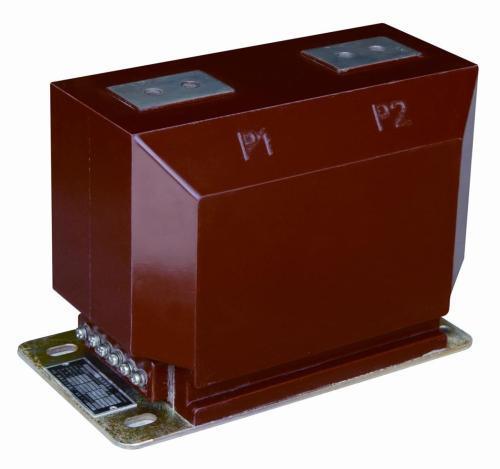

CT/PT transformer potting & coil encapsulation
Outdoor bushings, insulators, switchgear
High-voltage electrical insulation components

Processing Methods

Method	Benefit
Vacuum Gravity Casting	Bubble-free encapsulation for complex geometries.
Automatic Pressure Gelation (APG)	High-yield production of crack-resistant parts.

Critical Properties

Property	Value/Description
Filler Status	Pre-mixed in resin & hardener
Dielectric Strength	>22 kV/mm (ASTM D149)
Thermal Shock Resistance	Excellent (1,000+ cycles, IEC 60216)
Crack Resistance	Optimized for outdoor exposure
Viscosity	Slurry liquid for deep gap filling
Certification	UL 94 V-0 (Flame Retardant)

Formulation Guide

Component	Product	Proportion
Epoxy Resin	LW-9229A	100 pbw
Hardener	LW-9229B	100 pbw
Colorant	LC-Series*	1 pbw

*Color paste optional for UV-stable pigmentation.

Why Choose LW-9229A/B?

This electrical-grade epoxy combines BPA's structural strength with pre-mixed fillers for unmatched crack resistance in outdoor applications. Its slurry viscosity ensures perfect gap filling for CT/PT windings, while room temperature curing reduces production costs. Ideal for 10-35kV terminal posts and transformer encapsulation, it delivers lifelong moisture resistance and dielectric performance under thermal cycling.
