Place of Origin:
Shanghai, China
브랜드 이름:
wenyou
Model Number:
9229
| Attribute | Value |
|---|---|
| CAS No. | 1675-54-3 |
| Other Names | epoxy resin potting compound |
| MF | C21H24O4 |
| EINECS No. | 500-033-5 |
| Classification | Double Components Adhesives |
| Main Raw Material | EPOXY |
| Usage | medium & high voltage transformer and electrical insulation |
| Type | Two Component |
| Color | Light Yellow |
| Flash point | 140 |
| Viscosity | 0.4-0.8 |
| Density | 1.17-1.24 |
| Vapor pressure | ≤0.01 Appr.1 |
Casting resin system - Flame Retardant Epoxy for Dry Type Transformer conforming to Standard IEC60076.

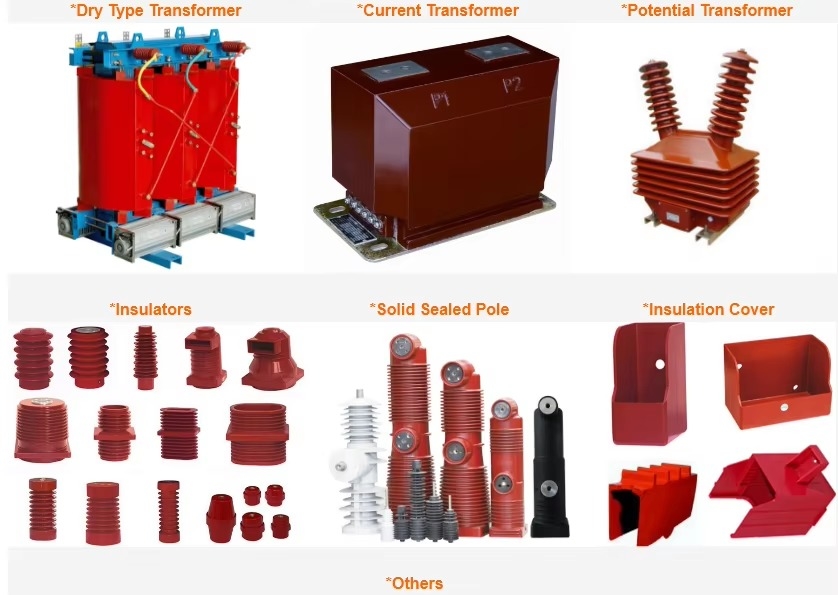

In the electrical industry, epoxy resin serves as the gold standard for insulating critical components. It is widely used in:
Its versatility extends to casting insulators, potting sensors, and manufacturing composite insulators, ensuring safety and efficiency across diverse electrical applications.
Protect critical assets in aggressive environments with our Chemical Resistant Epoxy Hardener for MV switchgear encapsulation. Designed for coastal substations, industrial plants, and wastewater facilities, this curing agent creates potting compounds with exceptional resistance to:
The formulation ensures long-term integrity of bushing seals, CT housings, and compartment barriers where corrosion compromises conventional materials.
| Component | Type | Quantity |
|---|---|---|
| Epoxy resin | LE-9229 | 100pbw |
| Hardener | LH-9229 | 100pbw |
| Filler | / | 300-350pbw |
| Color paste | LC-series | 3pbw |
Liquid, hot-curing, both APG & vacuum casting epoxy casting system with excellent crack resistance.
| Property | Temp. | Standard | Unit |
|---|---|---|---|
| Viscosity | AT 25 ℃ | ISO 3219 | mpa.s |
| Density | AT 25 ℃ | ISO 1675 | g/cm3 |
| Flash point | / | ISo 1523 | ℃ |
Advanced Siemens automated production line with a production capacity of 20,000 tons/year. Robots replace manual labor for precise, consistent quality.
Contamination of eyes by resin, hardener of casting mix should be treated immediately by flushing with clean, running water for 10 to 15 minutes, then consult a doctor.
Material smeared or splashed on the skin should be dabbed off, and the contaminated area washed and treated with a cleaning cream. Consult a doctor in the event of severe irritation or burns.
Contaminated clothing should be changed immediately. Anyone taken ill after inhaling vapors should be moved outdoors immediately. In all cases of doubt, call for medical assistance.
